SERIES 1 ALUMINUM FRAME
The Stinson features a Series 1 6061 aluminum frame with
exceptionally low standover, disc brake mounts, and rack and fender
eyelets and high-volume 27.5” wheels. Stinson ST models further
lower the standover height with a step-through frame design.
COMFORT CONTROL GEOMETRY
Marin Comfort Control geometry allows you to touch the ground
with your forefoot when the saddle is at the correct height for full
pedaling leg extension.
27.5” TIRES
Large volume 27.5” x 2.35” tires are capable and comfortable across
a range of surfaces.
WIDE-RANGE GEARING
Wide-range, 1x gearing is simple to use and offers as large if not
larger of a gear range than multi-chainring bikes of the past.
DISC BRAKES
Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
Geometry:
|
|
S |
M |
L |
|
A STACK |
628.2 |
646.9 |
665.5 |
|
B REACH |
340 |
355 |
370 |
|
C HEADTUBE ANGLE |
68.5° |
68.5° |
68.5° |
|
D HEADTUBE LENGTH |
210 |
230 |
250 |
|
E SEATTUBE ANGLE |
67° |
67° |
67° |
|
F SEATTUBE LENGTH |
382 |
406 |
444 |
|
G TOPTUBE EFFECTIVE |
606.7 |
629.6 |
652.5 |
|
H BB HEIGHT |
276.5 |
276.5 |
276.5 |
|
I BB DROP |
68 |
68 |
68 |
|
J CHAINSTAY |
485 |
485 |
485 |
|
K WHEELBASE |
1083.9 |
1106.2 |
1128.6 |
|
L STANDOVER HEIGHT |
510.57 |
510.57 |
510.57 |
|
M FORK OFFSET |
40 |
40 |
40 |
|
SEATPOST DIAMETER |
30.9 |
30.9 |
30.9 |
|
HANDLEBAR WIDTH |
700 |
700 |
700 |
|
STEM LENGTH |
45 |
45 |
45 |
|
CRANK LENGTH |
170 |
170 |
175 |
All lengths in millimeters
Specs:
FRAME: Series 1 Comfort, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
FORK: CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
RIMS: Marin Aluminum Double Wall, Disc Specific
HUB, REAR: Forged Aluminum Alloy, 32H
HUB, FRONT: Forged Aluminum Alloy, 32H
SPOKE, NIPPLES: 14g Stainless Steel
TIRES: Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
DERAILLEUR, REAR: Shimano Tourney, 7-Speed
SHIFT LEVER: Shimano Altus 7-Speed RapidFire
CRANKSET: Alloy Crank, Steel 38T Chainring, Ring Guard
BOTTOM BRACKET: Sealed Cartridge Bearings, Square Taper
CHAIN: KMC Z8
CASSETTE: SunRace 7-Speed, 11-34T
BRAKE, FRONT: Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
BRAKE, REAR: Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
BRAKE LEVERS: Shimano w/ Integrated Shifters
HANDLEBAR: Marin Alloy, 60mm Rise, 30˚ Backsweep
STEM: Marin Alloy
GRIPS: Marin Adventure
HEADSET: FSA, TH No.10P
SEATPOST: Marin Alloy, 27.2mm

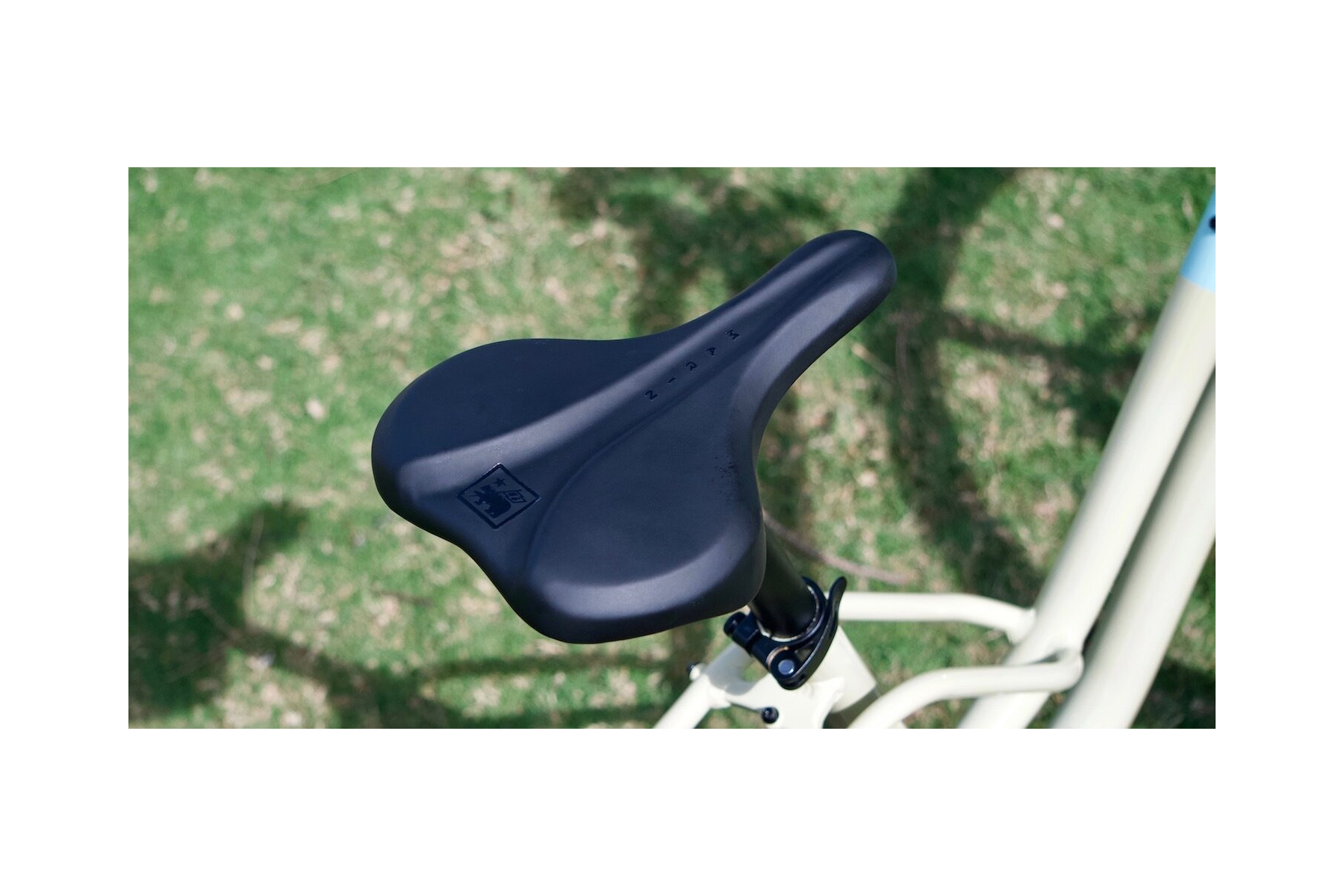

SADDLE: Marin Comfort
PEDALS: Marin Comfort Platform
Specifications, pricing, and availability are subject to change without notice.
