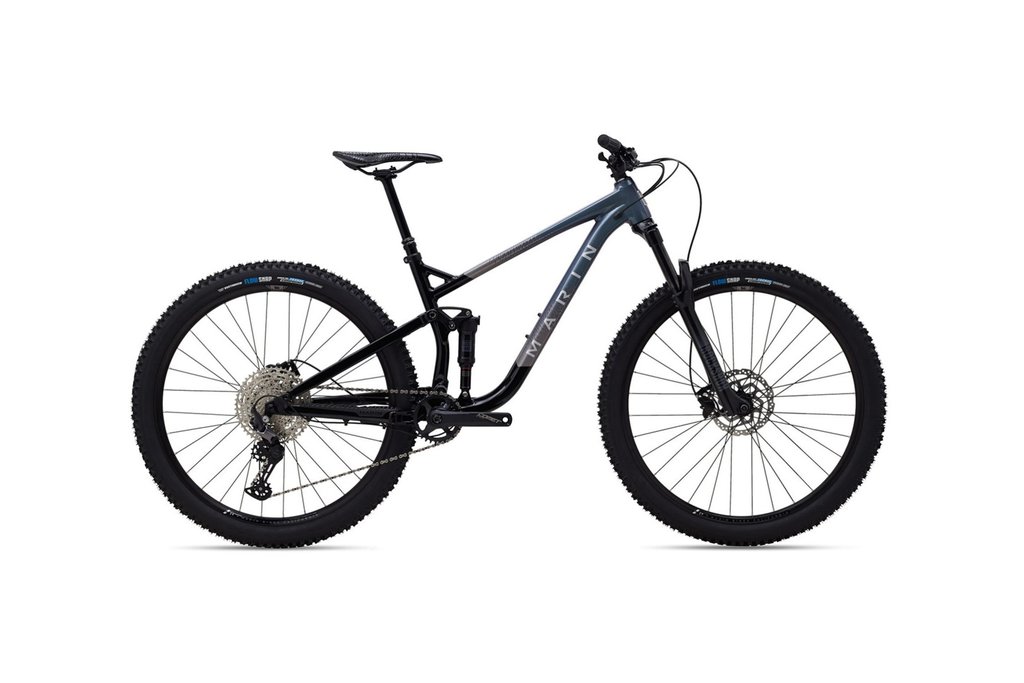

Marin Rift Zone 2 29

$2,399.00 $1,699.00
1 In stock
Article code 732406001
The Rift Zone is created for the rider looking for the capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.
Add to cart

Key upgrades from Rift Zone 1 29:

  • RockShox Deluxe Select R Debonair rear shock
  • Shimano Deore 12-speed drivetrain
  • TranzX dropper post
  • Vee Tire Flow Snap 2.35" tires

SERIES 3 ALUMINUM FRAME

Rift Zone 1, 2, and 3 models feature Series 3 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider a high feature and high-performing upgrade-worthy platform.

MULTITRAC SUSPENSION TECHNOLOGY

MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks.

MODERN GEO FOR THE MODERN TRAIL SLAYER

Using the most from modern features, Rift Zone 29 models utilize short fork offsets and slack head tube angles to ensure that the bike handles perfectly from a seated or standing position, and travels effortlessly up and down the mountain.

INTERNAL ROUTING

Both carbon and alloy frames sport full internal cable routing in the front triangle with Marin’s all-new internal cable routing grommets, providing a clean and rattle free cable set up.

GEOMETRY:



S

M

L

XL

A  STACK

602.6

607.15

611.7

616.25

B  REACH

430

455

480

505

C  HEADTUBE ANGLE

65.5°

65.5°

65.5°

65.5°

D  HEADTUBE LENGTH

100

105

110

115

E  SEATTUBE ANGLE

76°

76°

76°

76°

F  SEATTUBE LENGTH

390

400

425

430

G  TOPTUBE EFFECTIVE

     580.24

   606.36

   632.51

    658.6

H  BB HEIGHT

344

344

344

344

I  BB DROP

34

34

34

34

J  CHAINSTAY

425

425

425

425

K  WHEELBASE

1158.92

1186

1213

1240.1

L  STANDOVER HEIGHT

     691.84

    697.1

    717.83

   721.97

M  FORK OFFSET

44

44

44

44

SEATPOST DIAMETER

30.9

30.9

30.9

30.9

HANDLEBAR WIDTH

780

780

780

780

STEM LENGTH

35

35

35

35

CRANK LENGTH

170

175

175

175

All lengths in millimeters

SPECS:

  • Frame: Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12 Boost Spacing2, 73mm Threaded BB w/ ISCG05 Tabs
  • Fork: RockShox Recon Silver RL 29", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 42mm Offset
  • Shock: RockShox Deluxe Select R, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x50mm, M8x25mm Hardware
  • Rims: Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
  • Hub Rear: Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body
  • Hub Front: Shimano HF-MT410B, 110x15mm, Centerlock
  • Spokes: 14g Black Stainless Steel
  • Tires: Vee Tire Flow Snap 29x2.35", Tackee Compound, Tubeless Ready
  • Derailleur Rear: Shimano Deore, 12-Speed, SGS
  • Shift Lever: Shimano Deore, 12-Speed, SL-6100IR
  • Crankset: FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
  • Bottom Bracket: External Sealed Cartridge Bearing
  • Chain: KMC X-12 Silver and Black
  • Cassette: Shimano, Deore M6100, 12-Speed, 10-51T
  • Front Brakes: Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
  • Rear Brakes: Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
  • Brake Levers: Shimano BL-MT201 Hydraulic Disc
  • Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
  • Stem: Marin 3D Forged Alloy, 35mm
  • Grips: Marin Single Clamp Locking
  • Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • Seatpost: TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
  • Saddle: Marin Speed Concept
  • Pedals: None Included
  • Extras: Bolt-On Thru-Axle
