Key upgrades over Nicasio:
- Series 2 Beyond Road double butted CrMo frame w/142x12mm thru-axle dropouts
- Marin full carbon fiber fork
- Shimano Tiagra 2x10 speed drivetrain
- Shimano hydraulic disc brakes
- WTB Riddler Comp 37mm tires
BEYOND ROAD GEOMETRY
Beyond Road Geometry offers a blend of endurance road handling with enhanced stability for off pavement use.
STEEL FRAME CONSTRUCTION
The Nicasio 2 uses a Series 2 butted 4130 CrMo frame with disc brakes, full fender and rack mounts, and two to three bottle bosses.

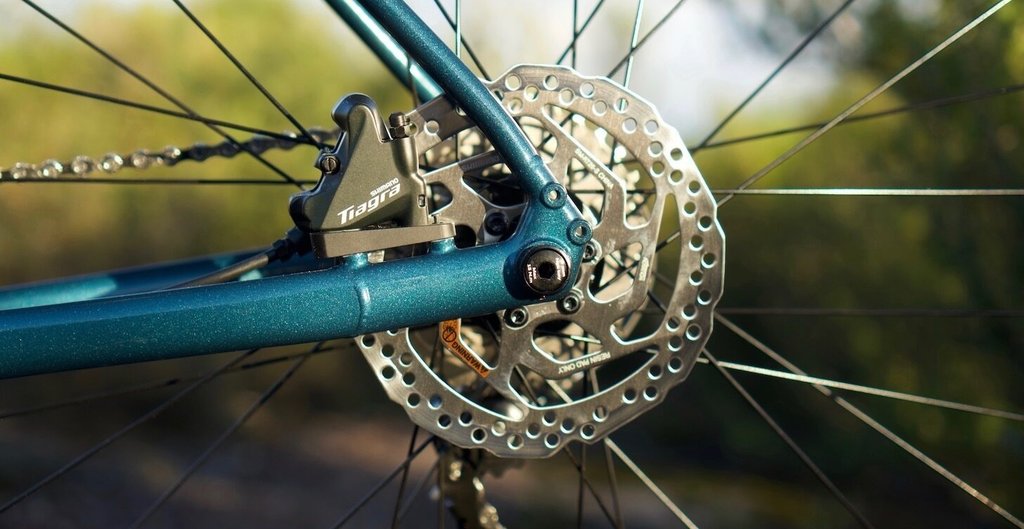

DISC BRAKES
Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
TIRE CLEARANCE
The Nicasio frame and fork has clearance for up to 700C x 40mm or 650B x 47mm tires. The Nicasio 2 as built with a front derailleur can accommodate up to 700 x 35mm tires.
GEOMETRY:
|
|
50cm |
52cm |
54cm |
56cm |
58cm |
60cm |
|
A STACK |
550 |
564 |
575 |
591.5 |
610.4 |
620 |
|
B REACH |
362.5 |
363 |
375 |
384.2 |
398.4 |
404.5 |
|
C HEADTUBE ANGLE |
70.5° |
70.5° |
71° |
71.5° |
71.5° |
71.5° |
|
D HEADTUBE LENGTH |
130 |
145 |
155 |
170 |
190 |
200 |
|
E SEATTUBE ANGLE |
74.5° |
74° |
74° |
74° |
74° |
74° |
|
F SEATTUBE LENGTH |
470 |
490 |
510 |
530 |
550 |
570 |
|
G TOPTUBE EFFECTIVE |
515 |
525 |
545 |
565 |
585 |
600 |
|
H BB HEIGHT |
269 |
269 |
269 |
269 |
269 |
269 |
|
I BB DROP |
72 |
72 |
72 |
72 |
72 |
72 |
|
J CHAINSTAY |
420 |
420 |
420 |
420 |
420 |
420 |
|
K WHEELBASE |
998.5 |
1004 |
1014.6 |
1024.5 |
1045 |
1054.4 |
|
L STANDOVER HEIGHT |
721.09 |
741.53 |
758.79 |
777.05 |
796.2 |
812.46 |
|
M FORK OFFSET |
50 |
50 |
50 |
50 |
50 |
50 |
|
SEATPOST DIAMETER |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
|
HANDLEBAR WIDTH |
400 |
400 |
420 |
440 |
440 |
440 |
|
STEM LENGTH |
70 |
70 |
90 |
90 |
110 |
110 |
|
CRANK LENGTH |
170 |
170 |
175 |
175 |
175 |
175 |
All lengths in millimeters
Specs:
FRAME: Series 2 CrMo, Beyond Road Geometry, Thru-Axle, Disc Brake, Integrated Headset, Fender and Rack Mounts
FORK: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIMS: Marin Aluminum Double Wall, 19mm Inner, Disc Specific
HUB, REAR: Forged Aluminum Alloy, Disc, 32H
HUB, FRONT: Forged Aluminum Alloy, Disc, 32H
SPOKE, NIPPLES: 14g Black Stainless Steel
TIRES: WTB, Riddler Comp, 700Cx37, Folding Bead, Tubeless Ready
DERAILLEUR, REAR: Shimano Tiagra
DERAILLEUR, FRONT: Shimano Tiagra
SHIFT LEVER: Shimano Tiagra
CRANKSET: FSA Omega MegaExo, 50/34T
BOTTOM BRACKET: FSA MegaExo
CHAIN: KMC X10
CASSETTE: Shimano 10-Speed, 11-34T
BRAKE, FRONT: Shimano BR-4770 Hydraulic
BRAKE, REAR: Shimano BR-4770 Hydraulic
BRAKE LEVERS: Shimano Hydraulic w/ Integrated Shifters
HANDLEBAR: Marin Butted Alloy, Compact 12º Flared Drop
STEM: Marin 3D Forged Alloy
GRIPS: Marin Comfort Tape
HEADSET: FSA No.42/ACB
SEATPOST: Marin Alloy, 27.2mm
SADDLE: Marin Beyond Road Concept
PEDALS: Commute Platform
EXTRAS: Bolt-On Thru-Axles F and R
Specifications, pricing, and availability are subject to change without notice.
