Marin Alpine Trail XR

Key upgrades from Alpine Trail 7:

• RockShox Lyrik Ultimate/Super Deluxe coil suspension
• Shimano SLX/XT drivetrain
• FSA Gradient crankset

SERIES 4 ALUMINUM FRAME

Alpine Trail models feature Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers.

ONE PIECE FORGED ROCKER

The heart of the Alpine Trail’s MultiTrac suspension is the forged one-piece rocker link. The strength and stiffness of the rocker keeps the rear of the bike tracking straight, providing smooth suspension operation under the most demanding conditions.

BRIDGELESS SEATSTAY

The stiffness of the one-piece rocker link allows for a bridgeless seatstay design, offering zero compromises on stiffness while at the same time allowing for maximum tire clearance and short chainstays.

MODERN ANGLES

The Alpine Trail has a slack 63.5º head tube angle paired with a steep 78º seat tube angle and long reach to provide the best modern trail bike experience. The bike lets you climb better than ever before, while giving you even more confidence when descending.

GEOMETRY:

All lengths in millimeters

Specs:

FRAME: Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

FRONT SUSPENSION: RockShox Lyrik Ultimate, 29”, 160mm of Travel, Air Sprung, Debonair, Charger 2.1, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset

REAR SUSPENSION: RockShox Super Deluxe Coil Ultimate RCT, Coil Spring, Climb Switch, LS Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount (S/M = 350lb, L/XL = 450lb)

RIMS: Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible

HUB, REAR: Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body

HUB, FRONT: Shimano HF-MT410B, 110x15mm, Center\lock

SPOKE, NIPPLES: 14g Black Stainless Steel

TIRES: Maxxis Assegai 29x2.5”, MAXX TERRA, EXO+, Tubeless Compatible

DERAILLEUR, REAR: Shimano XT 12-Speed, SGS

DERAILLEUR, FRONT: -

SHIFT LEVER: Shimano SLX 12-Speed, I-Spec EV

CRANKSET: FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing

BOTTOM BRACKET: MEGAEVO BB, 73mm BSA Threaded

CHAIN: KMC X-12 Silver and Black

CASSETTE: Shimano SLX M7100 Cassette, 12-Speed, 10-51T

BRAKE, FRONT: Shimano BR-MT420, 4-Piston Hydraulic Disc, 203mm Rotor

BRAKE, REAR: Shimano BR-MT420, 4-Piston Hydraulic Disc, 180mm Rotor

BRAKE LEVERS: Shimano BL-M4100 Hydraulic, I-Spec EV Compatible

HANDLEBAR: Marin 35mm 7000 Alloy Bar, 780mm Length, 5 Degree Up, 8 Degree Back

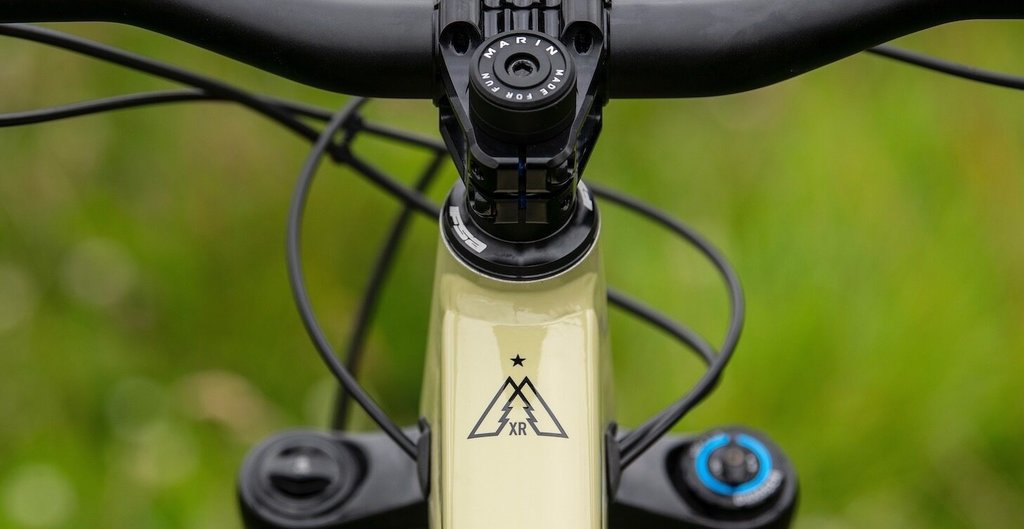

STEM: Marin CNC Stem, 35mm Length, 35mm Bar Bore

GRIPS: Marin Single Clamp Locking

HEADSET: FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST: X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm

SADDLE: Marin Speed Concept

PEDALS: -

EXTRAS: Bolt-On Thru-Axle

EXTRAS: Downtube Protector

Specifications, pricing, and availability are subject to change without notice.
