SERIES 3 ALUMINUM FRAME
The standard and step-through versions of Sausalito feature a Series 3 aluminum frame with butted tubes and robust forgings, specifically designed to house the drive unit and removable battery, as well as mount a variety of commute accessories directly to the frame.

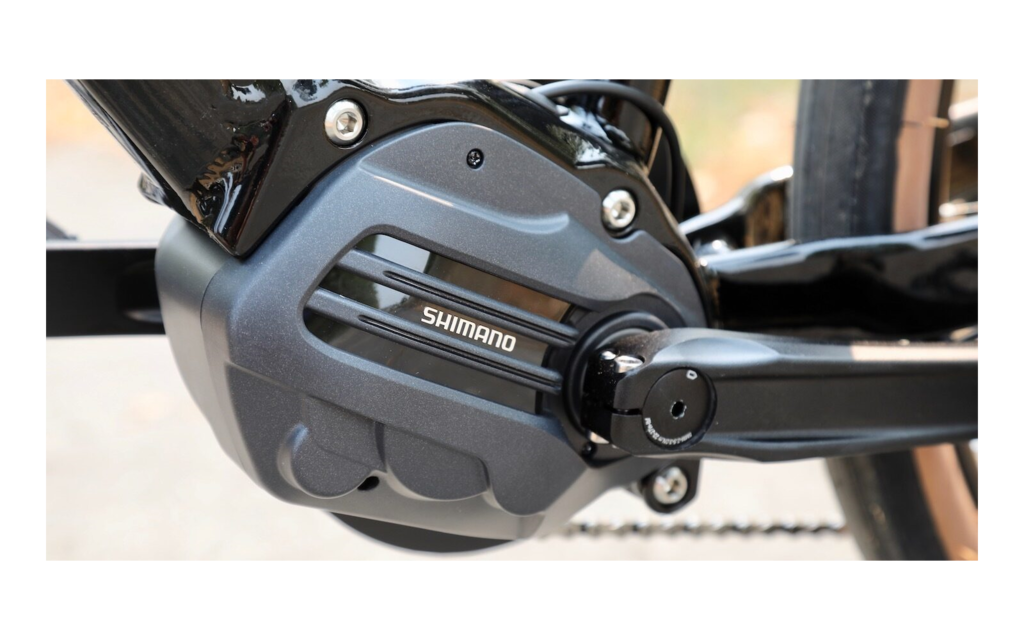

SHIMANO STEPS
The Sausalito 2 features the Shimano STEPS E6100 motor system with 250 Watts and 60Nm of torque have a good get up and go feeling, with long range and enough power to get you over the steepest of climbs. The Sausalito 1 features a Shimano STEPS E5000 system with 250 Watts and 40Nm of torque.
FORKS
The BMX inspired steel fork on Sausalito 1 and 63mm travel suspension fork on Sausalito 2 smooth out and stabilize the front of the bike when roads get rough.
418 WATT HOUR REMOVABLE BATTERY
The 418 Wh battery is secured direct to the frame with a key lock, and is easy to remove to carry with you for charging.
GEOMETRY:
|
|
S |
M |
L |
|
A STACK |
590 |
617.7 |
645.8 |
|
B REACH |
380 |
405 |
425 |
|
C HEADTUBE ANGLE |
69.5° |
69.5° |
69.5° |
|
D HEADTUBE LENGTH |
120 |
150 |
180 |
|
E SEATTUBE ANGLE |
74° |
74° |
74° |
|
F SEATTUBE LENGTH |
430 |
480 |
520 |
|
G TOPTUBE EFFECTIVE |
549 |
582 |
610.2 |
|
H BB HEIGHT |
296.5 |
296.5 |
296.5 |
|
I BB DROP |
45 |
45 |
45 |
|
J CHAINSTAY |
455 |
455 |
455 |
|
K WHEELBASE |
1083.4 |
1118.9 |
1149.4 |
|
L STANDOVER HEIGHT |
460.19 |
487.35 |
510.57 |
|
M FORK OFFSET |
44 |
44 |
44 |
|
SEATPOST DIAMETER |
27.2 |
27.2 |
27.2 |
|
HANDLEBAR WIDTH |
720 |
740 |
740 |
|
STEM LENGTH |
45 |
45 |
45 |
|
CRANK LENGTH |
170 |
170 |
175 |
All lengths in millimeters
Specs:
FRAME: Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Low-Step Design, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts
FORK: SR Suntour NVX-E, 63mm Travel, Disc Specific
RIMS: Marin Aluminum Double Wall, Disc Specific
HUB, REAR: Forged Alloy, Disc Specific, 32H
HUB, FRONT: Forged Alloy, Disc Specific, 32H
SPOKE, NIPPLES: 14g Black Stainless Steel
TIRES: WTB Horizon, 650Bx47, Wire Bead

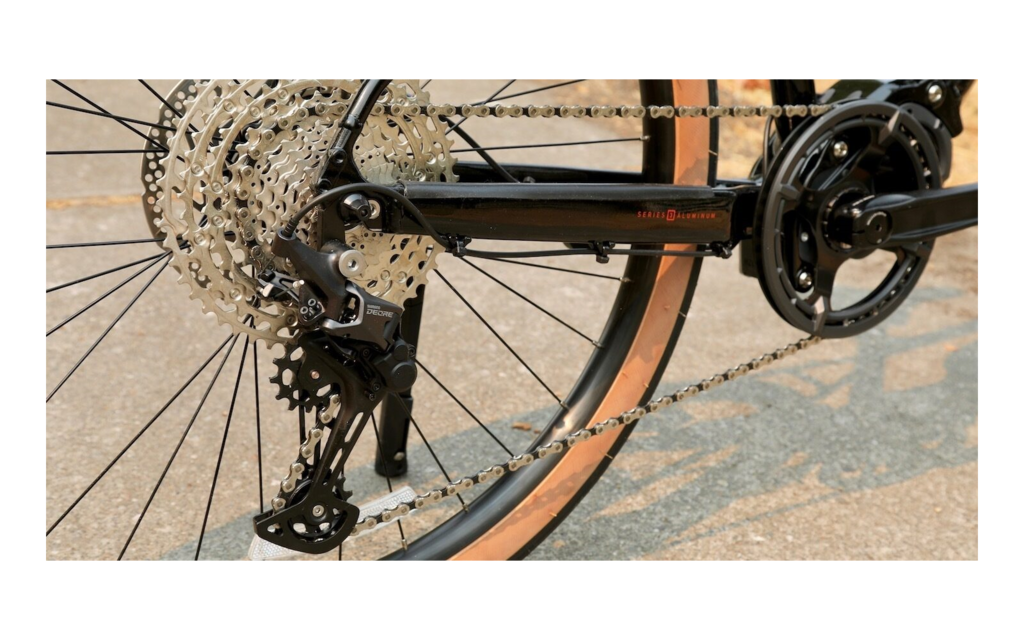

DERAILLEUR, REAR: Shimano Deore 11-Speed
DERAILLEUR, FRONT: -
SHIFT LEVER: Shimano Deore 11-Speed
CRANKSET: Forged Aluminum w/ 44T Steel Chairing
MOTOR: Shimano STEPS E6100 System
BOTTOM BRACKET: -
CHAIN: KMC E11S
CASSETTE: Shimano Deore 11-Speed 11-51T
BRAKE, FRONT: Shimano MT201 Hydraulic, 180mm Rotor
BRAKE, REAR: Shimano MT201 Hydraulic, 180mm Rotor
BRAKE LEVERS: Shimano MT201 Hydraulic
HANDLEBAR: Marin MiniRiser Alloy
STEM: Marin Alloy
GRIPS: Marin County
HEADSET: FSA No. 57E
SEATPOST: Marin Alloy, 30.9mm

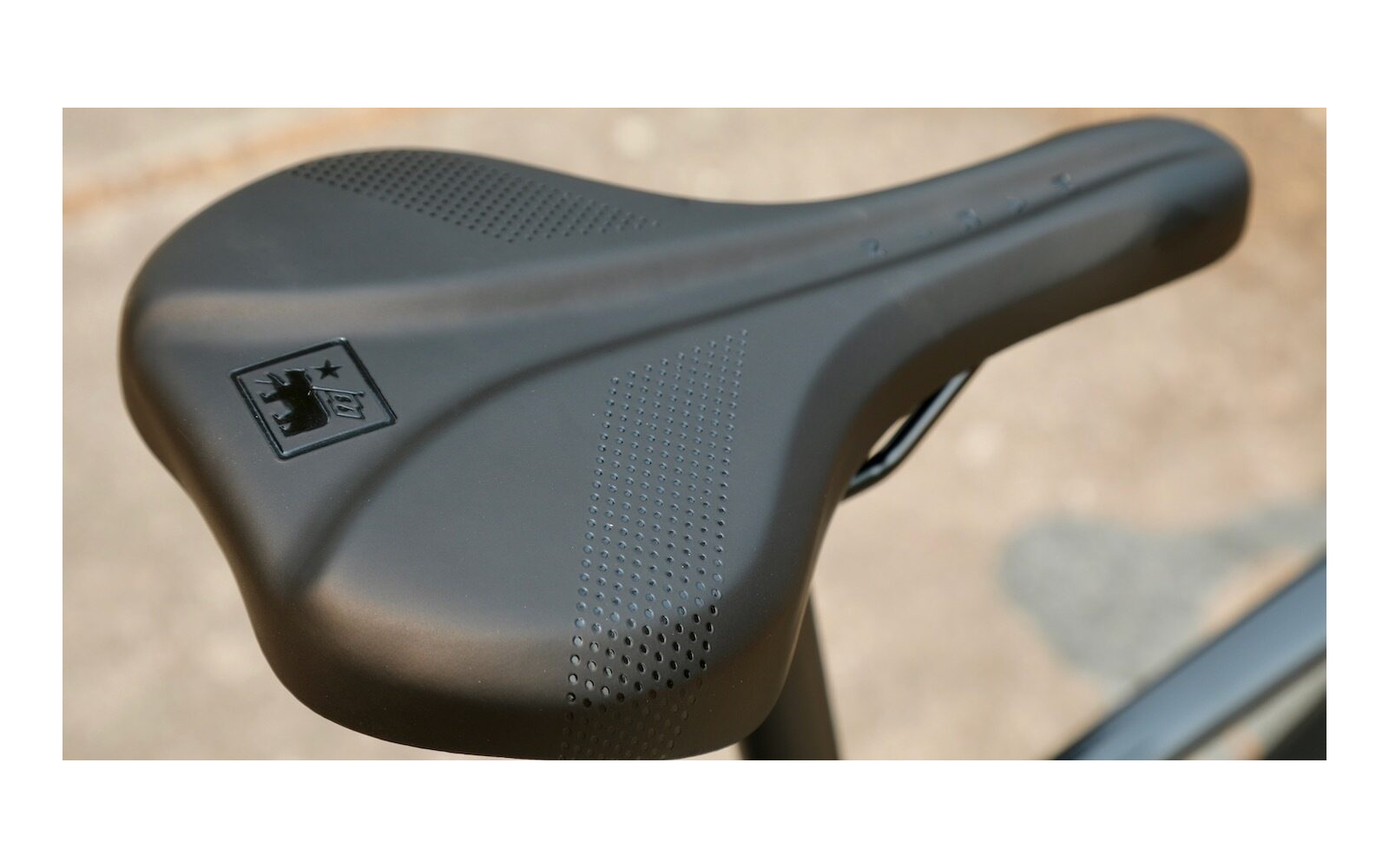

SADDLE: Marin City Plush
PEDALS: Nylon Platform
KICKSTAND: Rear Mount Alloy
BATTERY: Shimano BT6010, 418Wh
Specifications, pricing, and availability are subject to change without notice.
