BEYOND ROAD GEOMETRY
Beyond Road Geometry offers a blend of endurance road handling with enhanced stability for off pavement use.

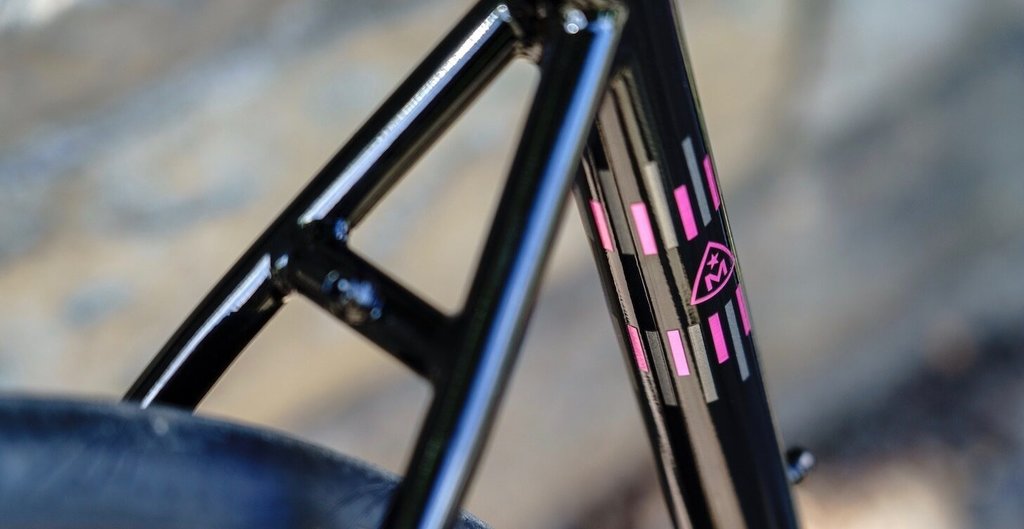

STEEL FRAME CONSTRUCTION
The Nicasio 1 Series 1 butted 4130 CrMo frame with disc brakes, full fender and rack mounts, and two to three bottle bosses.

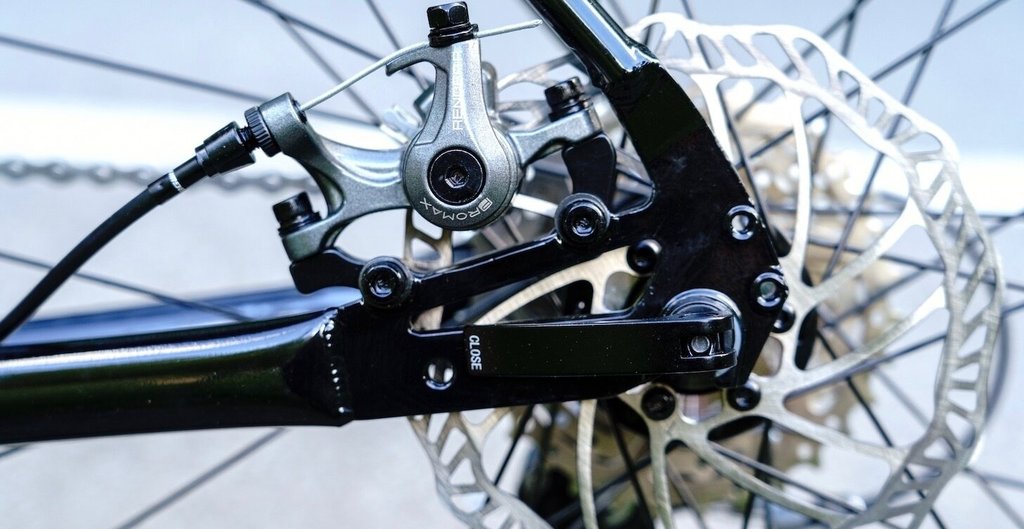

DISC BRAKES
Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
TIRE CLEARANCE
The Nicasio frame and fork has clearance for up to 700C x 40mm or 650B x 47mm tires. The Nicasio 2 as built with a front derailleur can accommodate up to 700 x 35mm tires.
GEOMETRY:
|
|
47 |
50 |
52 |
54 |
56 |
58 |
60 |
|
A STACK |
534.57 |
541.26 |
555.4 |
574.52 |
590.64 |
609.72 |
619.25 |
|
B REACH |
349.75 |
359.8 |
360.48 |
378.42 |
384.42 |
398.59 |
404.75 |
|
C HEADTUBE ANGLE |
70 |
70.5 |
70.5 |
72 |
72.5 |
72.5 |
72.5 |
|
D HEADTUBE LENGTH |
125 |
130 |
145 |
155 |
170 |
190 |
200 |
|
E SEATTUBE ANGLE (ACTUAL) |
74.5 |
74 |
73.5 |
73.5 |
73 |
73 |
72.5 |
|
F SEATTUBE LENGTH |
440 |
470 |
490 |
510 |
530 |
550 |
570 |
|
G TOPTUBE (EFFECTIVE) |
498 |
515 |
525 |
545 |
565 |
585 |
600 |
|
H BOTTOM BRACKET HEIGHT |
269 |
269 |
269 |
269 |
269 |
269 |
269 |
|
I BOTTOM BRACKET DROP |
72 |
72 |
72 |
72 |
72 |
72 |
72 |
|
J CHAINSTAY |
420 |
420 |
420 |
420 |
420 |
420 |
420 |
|
K WHEELBASE |
992.55 |
1000.22 |
993.92 |
999.2 |
1008.92 |
1029.1 |
1038.26 |
|
L STANDOVER HEIGHT |
697.12 |
721.09 |
741.53 |
758.79 |
777.05 |
796.2 |
812.46 |
|
M FORK OFFSET |
57 |
57 |
57 |
45 |
45 |
45 |
45 |
|
SEATPOST DIAMETER |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
|
HANDLEBAR WIDTH |
400 |
400 |
420 |
420 |
440 |
440 |
440 |
|
STEM LENGTH |
75 |
75 |
75 |
75 |
90 |
90 |
90 |
|
CRANK LENGTH |
170 |
170 |
170 |
175 |
175 |
175 |
175 |
Specs:
FRAME: Series 1 Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
FORK: CrMo, Fender and Rack Eyelets, IS Disc Mount
RIMS: Marin Aluminum Double Wall, 19mm Inner, Disc Specific
HUB, REAR: Forged Aluminum Alloy, 32H
HUB, FRONT: Forged Aluminum Alloy, 32H
SPOKE, NIPPLES: 14g Black Stainless Steel
TIRES: Vee Tire, Apache Chief, 700Cx30, Wire Bead
DERAILLEUR, REAR: Shimano Claris 8-Speed
DERAILLEUR, FRONT: Shimano Claris
SHIFT LEVER: Shimano Claris 2x8-Speed
CRANKSET: FSA Tempo Compact, 50/34T
BOTTOM BRACKET: Sealed Cartridge Bearings, Square Taper
CHAIN: KMC Z-8.3
CASSETTE: SunRace 8-Speed, 11-32T
BRAKE, FRONT: Promax Render R Road Mechanical Disc, 160mm Rotor
BRAKE, REAR: Promax Render R Road Mechanical Disc, 160mm Rotor
BRAKE LEVERS: Shimano w/ Integrated Shifters
HANDLEBAR: Marin Butted Alloy, Compact 12º Flared Drop
STEM: Marin 3D Forged Alloy
GRIPS: Marin Comfort Tape
HEADSET: FSA No.8D, Sealed Cartridge Bearings
SEATPOST: Marin Alloy, 27.2mm
SADDLE: Marin Beyond Road Concept
PEDALS: Commute Platform
Specifications, pricing, and availability are subject to change without notice.
